Application: Stability of Planetary Systems#

Planetary systems are an example of a few-body problem — each planet exerts a gravitational force on the others, in addition to the dominant gravitation influence of the central star. If the planets get too close, then collisions or ejections can occur.

Hill radius#

An important concept in plantary dynamics is the mutual Hill radius, \(R_h\), which measures how much one planet affects another through their gravitational attraction at closest encounter:

\[R_h = \frac{a_1 + a_2}{2} \left ( \frac{M_1 + M_2}{3 M_\star} \right )^{1/3}\]

where \(a_1\) and \(a_2\) are the radii of the planet orbits and \(M_1\) and \(M_2\) are their masses (this is closely related to the Hill sphere) and we define the separation between planets 1 and 2 (in circular orbits).

The separation between to planets relative to their hill radius is:

\[\Delta = \frac{a_2 - a_1}{R_h}\]

(assuming \(a_2 > a_1\)).

Important

For a system with 2 planets, it turns out that the orbits are stable as long as \(\Delta \gtrsim 3.5\) (see, e.g., Gladman 1993). For more than 2 planets, there is no simple constraint on \(\Delta\), but less massive planets with larger spacings tend to be more stable, and the stability criteria depends on how long you want the system to remain stable (see, e.g., Smith & Lissauer 2009, Morrison & Kratter 2016).

We will attempt to model the stability of a system like HR 8799. A recent investigation of this system was done in Götberg et al. 2016 which found many configurations are unstable to the estimated age of this explanetary system.

import numpy as np
import matplotlib.pyplot as plt
class State:
    """a container to hold an object"""

    def __init__(self, mass, x, y, u, v):
        self.mass = mass
        self.x = x
        self.y = y
        self.u = u
        self.v = v

    def __str__(self):
        return f"{self.mass:10.6f}: {self.x:10.6f} {self.y:10.6f} {self.u:10.6f} {self.v:10.6f}"

Integrator#

We will implement the 4th order sympletic integrator of Yoshida 1990 (see also Wikipedia’s leapfrong article). This follows the same ideas as the velocity-Verlet method — there is a sequemce of drifts and kicks arranged to make the truncation error \(\mathcal{O}(\Delta t^4)\).

Note

We work in units of solar masses, astronomical units, and years.

In setting up our solar system, we require the mass of the star and the semi-major axes and masses of the planets. We will use circular orbits for the planets, with the initial position given a random angle about the Sun (the seed parameter sets the random number generator seed).

Important

We want our system to be at rest and for the barycenter to be at the origin, so once we initialize the planets, we compute the center of mass and momentum and adjust the star’s position and velocity to ensure that the center of mass is at the origin and stationary. This has the side-effect that the planet orbits now have a small initial eccentricity.

Tip

Our integrator will only store the last max_history positions of the planets, since matplotlib can have trouble with really long integration histories. We accomplish this by using a python deque instead of a list to manage the data.

import collections

Note

We will stop the integration if any of the planets gains a distance from the origin larger than escape_radius.

Close encounters can be problematic. One approach is to switch from using a sympletic integrator to a high-order time-adaptive integrator with error-control once two planets become closer than a few Hill radii (see, e.g., Chatterjee et al. 2008).

Tip

To avoid having to compute the acceleration between a pair of bodies in our solar system twice, we use itertools.product() to loop give us all pairs of objects and then only compute the force between them once.

import itertools
class SolarSystem:
    """model the gravitational interaction of a solar system."""

    def __init__(self, M_star, *, m_planets=None, a_planets=None,
                 max_history=50000, SMALL=1.e-30,
                 seed=1234, escape_radius=10000):

        # initialize the random number generator
        np.random.seed(seed)

        # Yoshida integrator constants
        cbrt2 = np.cbrt(2)
        w0 = -cbrt2 / (2 - cbrt2)
        w1 = 1 / (2 - cbrt2)

        self.c = np.array([w1 / 2, 0.5 * (w0 + w1), 0.5 * (w0 + w1), w1 / 2])
        self.d = np.array([w1, w0, w1])

        self.G = 4 * np.pi**2  # units AU**3 / (solar mass * year**2)
        self.M_star = M_star

        self.escape_radius = escape_radius
        self.a_initial = [0] + a_planets

        # store the history of the solar system
        self.history = collections.deque(maxlen=max_history)

        # we have the star and planets
        self.nobjects = len(m_planets) + 1

        # current solar system
        system = []

        # store the star
        system.append(State(M_star, 0.0, 0.0, 0.0, 0.0))

        # store the planets
        assert len(m_planets) == len(a_planets)

        for m, a in zip(m_planets, a_planets):
            # pick a random angle and then set the velocity to be circular
            phi = np.random.uniform(0, 2.0*np.pi)
            v_circ = np.sqrt(self.G * self.M_star / a)
            system.append(State(m,
                                a*np.cos(phi), a*np.sin(phi),
                                -v_circ*np.sin(phi), v_circ*np.cos(phi)))

        # now correct the star's state so the center of mass is stationary
        # and at the origin
        system[0].x = -sum(s.mass * s.x for n, s in enumerate(system) if n != 0) / M_star
        system[0].y = -sum(s.mass * s.y for n, s in enumerate(system) if n != 0) / M_star
        system[0].u = -sum(s.mass * s.u for n, s in enumerate(system) if n != 0) / M_star
        system[0].v = -sum(s.mass * s.v for n, s in enumerate(system) if n != 0) / M_star

        # store the initial state
        self.history.append(system)

        self.SMALL = SMALL

        self.time = collections.deque([0.0], maxlen=max_history)

        h = self.compute_hill_separation(system)
        print(f"initial minimum relative separation / Hill radius = {h.min()}")

    def npts(self):
        """return the number of integration points"""
        return len(self.time)

    def compute_hill_separation(self, state):
        """compute the multiual Hill radius for each pair of planets"""
        h_sep = np.zeros((self.nobjects, self.nobjects))
        h_sep[:, :] = np.inf

        # loop over the pairs of planets
        for p1, p2 in itertools.product(range(1, self.nobjects),
                                        range(1, self.nobjects)):
            if p1 >= p2:
                continue

            a1 = np.sqrt((state[p1].x - state[0].x)**2 +
                         (state[p1].y - state[0].y)**2)

            a2 = np.sqrt((state[p2].x - state[0].x)**2 +
                         (state[p2].y - state[0].y)**2)

            r_hill = 0.5 * (a1 + a2) * np.cbrt((state[p1].mass +
                                                state[p2].mass) /
                                               (3 * self.M_star))
            h_sep[p1, p2] = np.abs(a2 - a1) / r_hill
            h_sep[p2, p1] = h_sep[p1, p2]

        return h_sep

    def rhs(self, states):
        """states is (State, State, ...)"""

        ydots = []

        # first setup the State objects for each body
        # with only dx/dt and dy/dt initialized
        for s in states:
            ydots.append(State(s.mass, s.u, s.v, 0, 0))

        # now loop over all unique pairs of objects and add
        # to the acceleration that each object in the pair feels
        for iobj, jobj in itertools.product(range(self.nobjects),
                                            range(self.nobjects)):
            if iobj >= jobj:
                continue

            dx = states[jobj].x - states[iobj].x
            dy = states[jobj].y - states[iobj].y

            r = np.sqrt(dx**2 + dy**2) + self.SMALL
            ax = self.G * dx / r**3
            ay = self.G * dy / r**3

            ydots[iobj].u += states[jobj].mass * ax
            ydots[iobj].v += states[jobj].mass * ay

            ydots[jobj].u += -states[iobj].mass * ax
            ydots[jobj].v += -states[iobj].mass * ay

        return ydots

    def single_step_yoshida(self, states_old, dt):
        """take a single step using the 4th order Yoshida integrator"""

        # we can just work on the "new" state directly, so start by
        # copying the old to new
        states_new = []
        for s in states_old:
            states_new.append(State(s.mass, s.x, s.y, s.u, s.v))

        # drift with current velocity
        for s in states_new:
            s.x += self.c[0] * s.u * dt
            s.y += self.c[0] * s.v * dt

        for i in range(3):
            # evaluate the force
            ydots = self.rhs(states_new)

            # kick followed by drift
            for n, s in enumerate(states_new):
                s.u += self.d[i] * ydots[n].u * dt
                s.v += self.d[i] * ydots[n].v * dt

                s.x += self.c[i+1] * s.u * dt
                s.y += self.c[i+1] * s.v * dt

        return states_new

    def integrate(self, dt, tmax):
        """integrate our system"""

        t = self.time[-1]
        escaped = False
        while t < tmax and not escaped:

            dt = min(dt, tmax-t)

            states_old = self.history[-1]
            states_new = self.single_step_yoshida(states_old, dt)

            t += dt

            self.time.append(t)
            self.history.append(states_new)

            # check if any planet has escaped
            for n, s in enumerate(states_new):
                if n == 0:
                    continue
                if np.sqrt(s.x**2 + s.y**2) > self.escape_radius:
                    print(f"planet {n} escaped!")
                    escaped = True

    def plot(self, draw_original_orbits=True):
        fig, ax = plt.subplots()

        if draw_original_orbits:
            theta = np.radians(np.arange(361))
            for n in range(self.nobjects):
                ax.plot(self.a_initial[n]*np.cos(theta),
                        self.a_initial[n]*np.sin(theta),
                        ls=":", color=f"C{n}")

        for n in range(self.nobjects):

            xs = [q[n].x for q in self.history]
            ys = [q[n].y for q in self.history]
            if n == 0:
                label = "*"
            else:
                label = f"planet {n}"
            ax.plot(xs, ys, color=f"C{n}", label=label)

        ax.axis("equal")
        ax.legend(fontsize="small")
        return fig

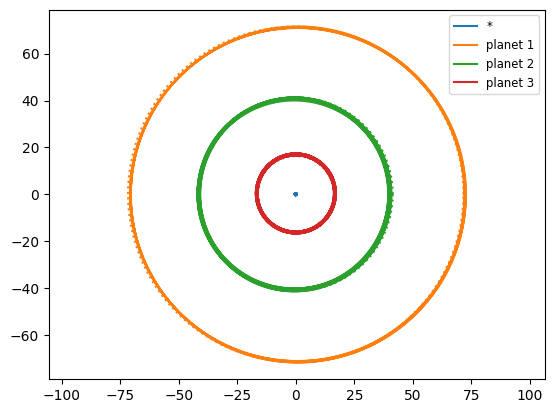

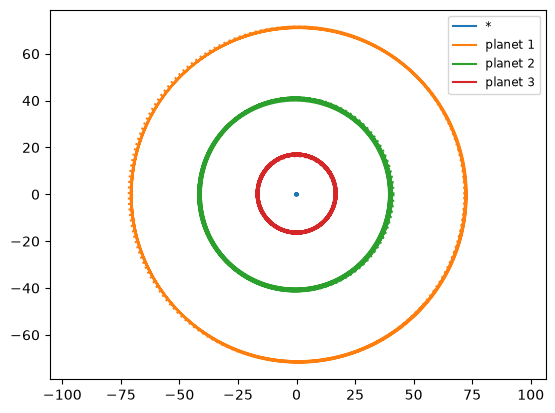

First integration test#

We’ll start with only 3 planets in the system. These are picked such that the initial \(\Delta > 3\) for the system.

# the system seems stable if we omit planet 3
m_planets = [0.0054, 0.0074, 0.0071]
a_planets = [71.6, 41.4, 16.3]
s = SolarSystem(1.5, m_planets=m_planets, a_planets=a_planets,
                escape_radius=1000)
initial minimum relative separation / Hill radius = 3.778998530885096
for o in s.history[0]:
    print(o)
  1.500000:   0.125746  -0.128205   0.002400   0.011411
  0.005400:  25.720964  66.820596  -0.848724   0.326696
  0.007400: -29.801160 -28.737621   0.830187  -0.860911
  0.007100: -15.068147   6.216185  -0.726889  -1.761992
s.integrate(0.05, 50000)
fig = s.plot()
../_images/d66ead5507124ca3d636b5b617719cbfc6927b413bd23a942fad39d88798ccdd.png

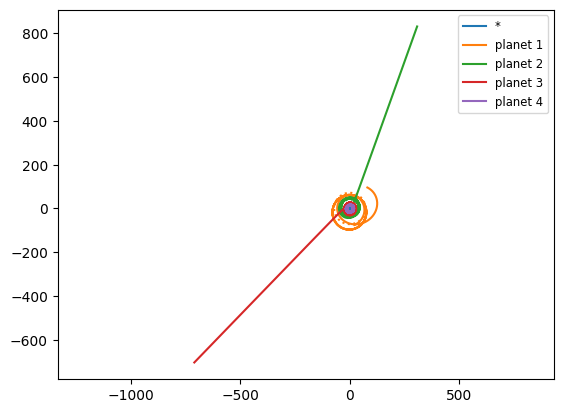

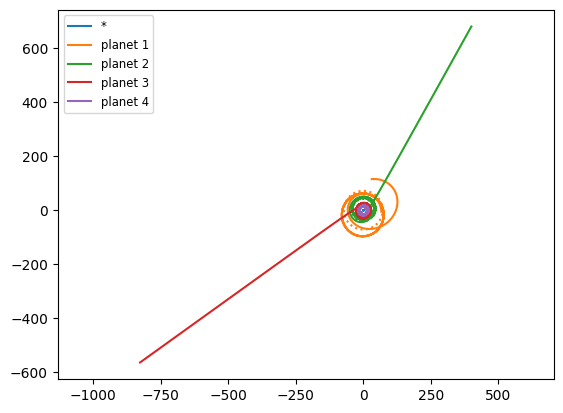

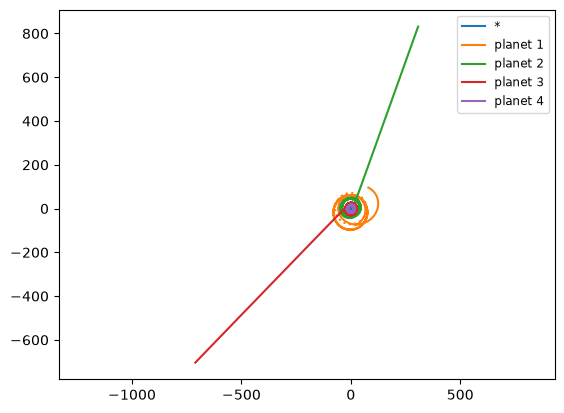

HR 8799 analogue#

Now we’ll add the 4th planet, giving us a system that approximates HR 8799.

# these are roughly the HR 8799 planet orbits
m_planets = [0.0054, 0.0074, 0.0087, 0.0071]
a_planets = [71.6, 41.4, 26.7, 16.3]
s = SolarSystem(1.5, m_planets=m_planets, a_planets=a_planets,
                escape_radius=1000)
s.integrate(0.05, 50000)
fig = s.plot()
initial minimum relative separation / Hill radius = 2.7875017302267695
planet 3 escaped!
../_images/f77b38d5b0ff38bb09786550c698c29182ec00386e021e4a0ef64af38ee5bacd.png

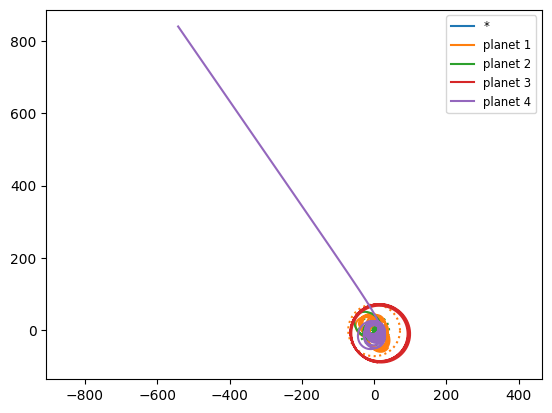

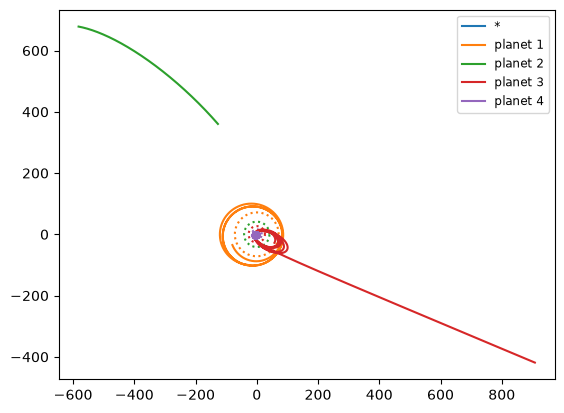

We can try different seeds, but the systems seem to always become unstable

s = SolarSystem(1.5, m_planets=m_planets, a_planets=a_planets,
                escape_radius=1000, seed=1)
s.integrate(0.05, 50000)
fig = s.plot()
initial minimum relative separation / Hill radius = 2.857002696633148
planet 3 escaped!
../_images/91c7d38ab38241205384dfc9c08a4e43c95503af611cfd026e9fa14ca7bdf671.png

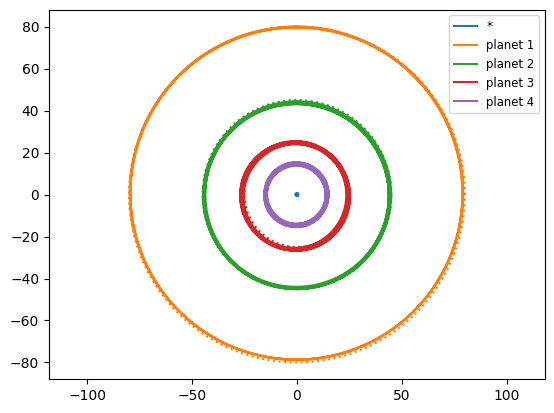

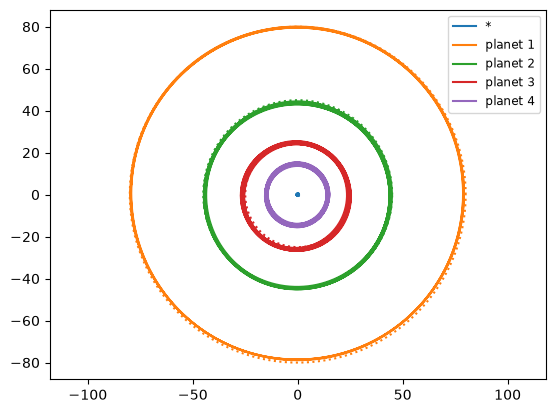

Increasing the spacing#

Let’s try with the same number of planets and masses, but we’ll increase the spacing a bit

m_planets = [0.0054, 0.0074, 0.0087, 0.0071]
a_planets = [80, 45, 25, 15]

s = SolarSystem(1.5, m_planets=m_planets, a_planets=a_planets,
                escape_radius=1000)
s.integrate(0.05, 50000)
fig = s.plot()
initial minimum relative separation / Hill radius = 3.3947859294168876
../_images/2a39b14fed0a85d192a895abb276bc1ffb351157452be2dda91c15ac066f9676.png

C++ implementation#

The C++ implementation is available as:

  • orbit_state.H

    #ifndef ORBIT_STATE_H
    #define ORBIT_STATE_H

    #include <iostream>
    #include <iomanip>

    struct OrbitState {
        // a container to hold the star positions
        double mass{};
        double x{};
        double y{};
        double u{};
        double v{};

        OrbitState(double M,
                   double x0, double y0, double u0, double v0)
            : mass(M), x(x0), y(y0), u(u0), v(v0)
        {}

        OrbitState() {}

    };

    inline
    std::ostream& operator<< (std::ostream& os, const OrbitState& s) {
        os.precision(6);

        os << std::setw(14) << s.mass
           << std::setw(14) << s.x
           << std::setw(14) << s.y
           << std::setw(14) << s.u
           << std::setw(14) << s.v;

        return os;
    }

    #endif

  • solar_system.H

    #ifndef SOLAR_SYSTEM_H
    #define SOLAR_SYSTEM_H

    #include <algorithm>
    #include <array>
    #include <cassert>
    #include <cmath>
    #include <cstddef>
    #include <deque>
    #include <iterator>
    #include <limits>
    #include <random>
    #include <vector>

    #include "orbit_state.H"

    constexpr double G_const{4.0 * M_PI * M_PI};


    class SolarSystem {

        double M_star{};
        double escape_R{};

        // Yoshida integration constants
        std::array<double, 4> c{};
        std::array<double, 3> d{};

    public:

        // for plotting, we'll store all the initial semi-major
        // axes, including the star's
        std::vector<double> a_initial;

        std::deque<std::vector<OrbitState>> history;
        std::deque<double> times;

        int n_objects{};

        const double SMALL{1.e-30};

        SolarSystem(double M_in,
                    const std::vector<double>& m_planets,
                    const std::vector<double>& a_planets,
                    double escape_radius=10000) :
            M_star(M_in),
            escape_R(escape_radius)
        {

            assert (m_planets.size() == a_planets.size());

            // integration constants
            const double w0 = -std::cbrt(2.0) / (2.0 - cbrt(2.0));
            const double w1 = 1.0 / (2.0 - std::cbrt(2.0));

            c[0] = w1 / 2.0;
            c[1] = 0.5 * (w0 + w1);
            c[2] = c[1];
            c[3] = c[0];

            d[0] = w1;
            d[1] = w0;
            d[2] = w1;

            a_initial.push_back(0.0);
            std::copy(a_planets.cbegin(), a_planets.cend(),
                      std::back_inserter(a_initial));

            n_objects = a_initial.size();

            // create the initial solar system
            std::vector<OrbitState> system;

            // store the star
            system.emplace_back(M_star, 0.0, 0.0, 0.0, 0.0);

            // now the planets.  We will give them random phases

            // seed the random number generator
            std::mt19937 generator(123);
            std::uniform_real_distribution<double> uniform(0.0, 1.0);

            for (std::size_t n = 0; n < m_planets.size(); ++n) {
                double phi = uniform(generator) * 2.0 * M_PI;
                double v_circ = std::sqrt(G_const * M_star / a_planets[n]);
                system.emplace_back(m_planets[n],
                                    a_planets[n] * std::cos(phi),
                                    a_planets[n] * std::sin(phi),
                                    -v_circ * std::sin(phi),
                                    v_circ * std::cos(phi));

            }

            // now correct the star's state so the center of mass
            // is stationary and at the origin

            // note: since the star was initialized with all 0s,
            // we can include it in the sum here without issue
            double mx_sum{};
            double my_sum{};
            double mu_sum{};
            double mv_sum{};
            for (const auto& object : system) {
                mx_sum += object.mass * object.x;
                my_sum += object.mass * object.y;
                mu_sum += object.mass * object.u;
                mv_sum += object.mass * object.v;
            };
            system[0].x -= mx_sum / system[0].mass;
            system[0].y -= my_sum / system[0].mass;
            system[0].u -= mu_sum / system[0].mass;
            system[0].v -= mv_sum / system[0].mass;

            // store the initial conditions
            history.push_back(system);
            times.push_back(0.0);
        }

        double
        compute_hill_separation(const std::vector<OrbitState>& state) {
            double h_sep{std::numeric_limits<double>::max()};

            for (int p1 = 1; p1 < n_objects; ++p1) {
                double a1 = std::sqrt(std::pow(state[p1].x - state[0].x, 2) +
                                      std::pow(state[p1].y - state[0].y, 2));

                // only consider unique pairs of p1 and p2
                for (int p2 = 1; p2 < p1; ++p2) {

                    double a2 = std::sqrt(std::pow(state[p2].x - state[0].x, 2) +
                                          std::pow(state[p2].y - state[0].y, 2));

                    double r_hill = 0.5 * (a1 + a2) *
                        std::cbrt((state[p1].mass + state[p2].mass) /
                                  (3.0 * M_star));

                    h_sep = std::min(h_sep, std::abs(a2 - a1) / r_hill);
                }
            }

            return h_sep;
        }

        std::vector<OrbitState>
        rhs(const std::vector<OrbitState>& states) {

            std::vector<OrbitState> ydots;

            for (int iobj = 0; iobj < n_objects; ++iobj) {
                ydots.emplace_back(states[iobj].mass,
                                   states[iobj].u, states[iobj].v, 0.0, 0.0);
            }

            // now loop over unique pairs and compute the force between
            // the two objects and add to both their accelerations

            for (int iobj = 0; iobj < n_objects; ++iobj) {
                for (int jobj = 0; jobj < iobj; ++jobj) {

                    double dx = states[jobj].x - states[iobj].x;
                    double dy = states[jobj].y - states[iobj].y;

                    double r = std::sqrt(dx * dx + dy * dy + SMALL);

                    double ax = G_const * dx / (r * r * r);
                    double ay = G_const * dy / (r * r * r);

                    ydots[iobj].u += states[jobj].mass * ax;
                    ydots[iobj].v += states[jobj].mass * ay;

                    ydots[jobj].u += -states[iobj].mass * ax;
                    ydots[jobj].v += -states[iobj].mass * ay;
                }
            }

            return ydots;
        }

        std::vector<OrbitState>
        single_step_yoshida(const std::vector<OrbitState>& states, const double dt) {

            // we can just work on the new state directly, so start by simply
            // copying the old state to the new state
            std::vector<OrbitState> states_new;
            std::copy(states.cbegin(), states.cend(), std::back_inserter(states_new));

            // drift with the current velocity
            for (auto& s : states_new) {
                s.x += c[0] * s.u * dt;
                s.y += c[0] * s.v * dt;
            }

            for (int i = 0; i < 3; ++i) {
                // evaluate the force
                auto ydots = rhs(states_new);

                for (int n = 0; n < n_objects; ++n) {
                    states_new[n].u += d[i] * ydots[n].u * dt;
                    states_new[n].v += d[i] * ydots[n].v * dt;

                    states_new[n].x += c[i+1] * states_new[n].u * dt;
                    states_new[n].y += c[i+1] * states_new[n].v * dt;
                }

            }

            return states_new;
        }

        void integrate(const double dt_in, const double tmax) {

            auto t = times.back();
            bool escaped{false};

            double dt{dt_in};

            while (t < tmax && ! escaped) {
                const auto& states_old = history.back();

                dt = std::min(dt, tmax-t);

                auto states_new = single_step_yoshida(states_old, dt);

                t += dt;

                times.push_back(t);
                history.push_back(states_new);

                // check if any planet has escaped
                for (int n = 1; n < n_objects; ++n) {
                    double r = std::sqrt(std::pow(states_new[n].x, 2) +
                                         std::pow(states_new[n].x, 2));
                    if (r > escape_R) {
                        escaped = true;
                        break;
                    }
                }
            }

        }
    };
    #endif

  • planetary_stability.cpp

    #include <fstream>
    #include <iomanip>
    #include <iostream>
    #include <vector>

    #include "solar_system.H"

    int main() {

        std::vector<double> m_planets{0.0054, 0.0074, 0.0071};
        std::vector<double> a_planets{71.6, 41.4, 16.3};

        SolarSystem s(1.5, m_planets, a_planets, 1000);

        for (const auto& states : s.history) {
            for (const auto& o : states) {
                std::cout << o << std::endl;
            }
        }

        std::cout << "initial hill separation = "
                  << s.compute_hill_separation(s.history[0]) << std::endl;

        s.integrate(0.05, 50000);

        std::ofstream of("planetary_stability.dat");

        for (std::size_t n = 0; n < s.history.size(); ++n) {
            const auto& states = s.history[n];

            of << std::setw(14) << s.times[n];
            for (const auto& object : states) {
                of << object;
            }
            of << std::endl;
        }

    }
