Implicit Methods and Nonlinear Systems

Nonlinear system

Consider the following nonlinear system:

\[\begin{split} \frac{d}{dt} \left ( \begin{array}{c} y_1 \\ y_2 \\ y_3 \end{array} \right ) = % \left ( \begin{array}{rrr} -0.04 y_1 & + 10^4 y_2 y_3 & \\ 0.04 y_1 & - 10^4 y_2 y_3 & -3\times 10^7 y_2^2 \\ & & 3\times 10^7 y_2^2 \end{array} \right ) \end{split}\]

The Jacobian is:

\[\begin{split} {\bf J} = \left ( \begin{array}{ccc} -0.04 & 10^4 y_3 & 10^4 y_2 \\ 0.04 & -10^4 y_3 - 6\times 10^7 y_2 & -10^4 y_2 \\ 0 & 6\times 10^7 y_2 & 0 \end{array} \right )\end{split}\]

(this example comes from the VODE documentation)

We’ll use the initial conditions

\[y_1(0) = 1, \, y_2(0) = y_3(0) = 0\]

This system has the longterm behavior that:

\[y_1, y_2 \rightarrow 0, \, y_3 \rightarrow 1\]

Although \(y_2\) is initially 0, it will build up quickly and feed the creation of \(y_3\).

Linearization

Let’s write our system as:

\[\dot{\bf y} = {\bf f}({\bf y})\]

We will discretize this as:

\[{\bf y}^{n+1} = {\bf y}^n + \tau {\bf f}(t^{n+1}, {\bf y}^{n+1})\]

We will linearize the righthand side. We’ll start with an initial guess for the new-time solution, \({\bf y}_0^{n+1}\), and seek a correction, \(\Delta {\bf y}_0\) such that:

\[{\bf y}^{n+1} = {\bf y}_0^{n+1} + \Delta {\bf y}_0\]

Now we insert this in \({\bf f}\) and Taylor expand:

\[{\bf f}(t^{n+1},{\bf y}^{n+1}) = {\bf f}(t^{n+1}, {\bf y}_0^{n+1} ) + \underbrace{ \left . \frac{\partial {\bf f}}{\partial {\bf y}} \right |_0}_{\equiv {\bf J}} \Delta {\bf y}_0 + \ldots\]

Our linearized system becomes:

\[{\bf y}^{n+1} = {\bf y}^n + \tau \left [ {\bf f}(t^{n+1}, {\bf y}_0^{n+1}) + {\bf J}\Delta {\bf y}_0 \right ]\]

or in terms of the correction:

\[\left ( {\bf I} - \tau {\bf J} \right ) \Delta {\bf y}_0 = {\bf y}^n - {\bf y}_0^{n+1} + \tau {\bf f}(t^{n+1}, {\bf y}_0^{n+1})\]

This is a linear system that we can solve. The basic idea will be:

• Apply the correction

• Check for convergence: \(\| \Delta {\bf y} \| < \epsilon \| {\bf y}^n \|\)

• Iterate, finding the next correction until we converge

Backward Euler Implementation

First we need functions for the righthand side and Jacobian

import numpy as np
import matplotlib.pyplot as plt

def rhs(t, Y):
    """ RHS of the system -- using 0-based indexing """
    y1 = Y[0]
    y2 = Y[1]
    y3 = Y[2]

    dy1dt = -0.04*y1 + 1.e4*y2*y3
    dy2dt =  0.04*y1 - 1.e4*y2*y3 - 3.e7*y2**2
    dy3dt =                         3.e7*y2**2

    return np.array([dy1dt, dy2dt, dy3dt])

def jac(t, Y):
    """ J_{i,j} = df_i/dy_j """

    y1 = Y[0]
    y2 = Y[1]
    y3 = Y[2]

    df1dy1 = -0.04
    df1dy2 = 1.e4*y3
    df1dy3 = 1.e4*y2

    df2dy1 = 0.04
    df2dy2 = -1.e4*y3 - 6.e7*y2
    df2dy3 = -1.e4*y2

    df3dy1 = 0.0
    df3dy2 = 6.e7*y2
    df3dy3 = 0.0

    return np.array([ [ df1dy1, df1dy2, df1dy3 ],
                      [ df2dy1, df2dy2, df2dy3 ],
                      [ df3dy1, df3dy2, df3dy3 ] ])

Next we’ll write the main driver. This integrates from [t, tmax] using a timestep dt_init. We specify a tolerance for the convergence of the nonlinear system solve for each step.

SMALL = 1.e-100

def backwards_euler(t, tmax, dt_init, y_init, rhs, jac,
                    tol=1.e-6, max_iter=100):
    """solve the system dy/dt = f(y), where f(y) is provided by the
    routine rhs(), and the Jacobian is provided by the routine jac().

      t : the current time
      tmax : the ending time of integration
      dt_init : initial timestep
      y_init : the initial conditions

    """

    time = t
    dt = dt_init

    # starting point of integration of each step
    y_n = np.zeros_like(y_init)
    y_n[:] = y_init[:]

    y_new = np.zeros_like(y_init)

    while time < tmax:

        converged = False

        # we want to solve for the updated y.  Set an initial guess to
        # the current solution.
        y_new[:] = y_n[:]

        err = 1.e30
        niter = 0

        neq = len(y_init)

        while err > tol and niter < max_iter:

            # construct the matrix A = I - dt J
            A = np.eye(neq) - dt * jac(time, y_n)

            # construct the RHS
            b = y_n - y_new + dt * rhs(time, y_new)

            # solve the linear system A dy = b
            dy = np.linalg.solve(A, b)

            # correct our guess
            y_new += dy

            # check for convergence
            err = np.linalg.norm(dy) / np.linalg.norm(y_new) #max(abs(y_new) + SMALL)
            niter += 1

        if time + dt > tmax:
            dt = tmax - time

        y_n[:] = y_new[:]
        time += dt

    return y_n

We’ll follow the example from the VODE documentation and integrate in several chunks. We’ll evolve from \(t = 0\) stopping at \(t = 10^{-6}, 10^{-5}, \ldots 10^8\). Each call to the integrator will begin with the time from the previous integration, and we’ll always set \(\tau\) to have ~10 steps per interval.

y_init = np.array([1.0, 0.0, 0.0])

# like the vode driver, we will do the integration in a bunch of
# pieces, increasing the stopping time by 10x each run
tends = np.logspace(-6, 8, 15)

time = 0.0
y_old = y_init.copy()

ys = []
for y in y_init:
    ys.append([y])

ts = [time]

total_be_solves = 0

for tmax in tends:

    y_new = backwards_euler(time, tmax, tmax/10, y_old, rhs, jac)

    time = tmax
    ts.append(time)
    for n, y in enumerate(y_new):
        ys[n].append(y)

    y_old[:] = y_new[:]

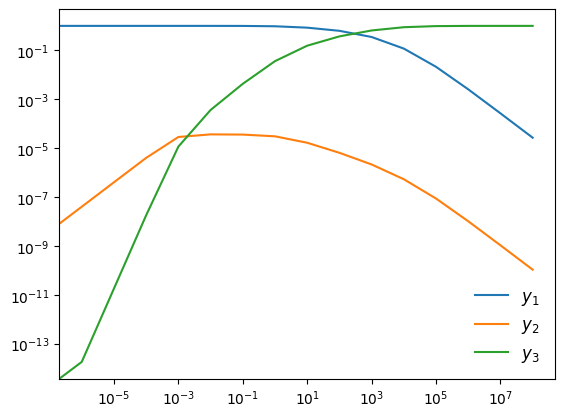

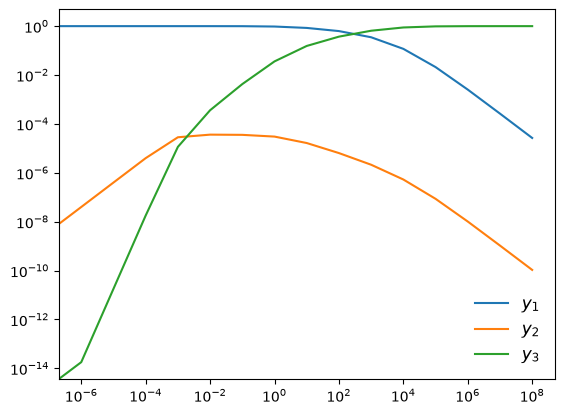

Now we can plot the 3 species

fig = plt.figure()
ax = fig.add_subplot(111)

for n, y in enumerate(ys):
    ax.plot(ts, y, label=rf"$y_{n+1}$")

ax.legend(frameon=False, fontsize="large")
ax.set_xscale("log")
ax.set_yscale("log")

Comparison of Methods

from scipy.integrate import solve_ivp

Now we can try integrating this system using any of the methods built into SciPy https://docs.scipy.org/doc/scipy/reference/generated/scipy.integrate.solve_ivp.html

We are successful if we try BDF, but we fail if we try the RK45 method. This is an empirical demonstration that this problem is stiff.

sol = solve_ivp(rhs, [0, 1.e8], [1, 0, 0], method="BDF", dense_output=True)

print(sol)

  message: The solver successfully reached the end of the integration interval.
  success: True
   status: 0
        t: [ 0.000e+00  3.196e-05 ...  9.399e+07  1.000e+08]
        y: [[ 1.000e+00  1.000e+00 ...  2.209e-05  2.075e-05]
            [ 0.000e+00  1.277e-06 ...  8.836e-11  8.300e-11]
            [ 0.000e+00  1.320e-09 ...  1.000e+00  1.000e+00]]
      sol: <scipy.integrate._ivp.common.OdeSolution object at 0x7f4adee50890>
 t_events: None
 y_events: None
     nfev: 443
     njev: 12
      nlu: 57
