Midterm 2

Midterm 2#

Let’s create and work with a vector.
- Give a single line of code that creates a vector of double precision numbers with the initial entries: 0.5, 1.5, 2.5, and 3.5. Call your vector vec.
  solution
  std::vector<double> vec{0.5, 1.5, 2.5, 3.5};
- How do we add a new element, 4.5, to the end of the vector?
  solution
  vec.push_back(4.5);
- How can I access the last value vec holds, regardless of how many entries it has?
  solution

  We could do:
  auto e = vec.back();
  or
  auto e = vec[vec.size()-1];
structs
- Write the code that creates a struct called employee that has 2 components: a string called name and an integer called id.
  solution
  struct employee { std::string name; int id; };
- Now give the code that creates a vector of this employee called personnel, and initialize it with 2 elements:
  - name: Bob; id: 1
  - name: Jane; id 2
  solution
  std::vector<employee> personnel{{.name="Bob", .id=1}, {.name="Jane", id=2}};
- Given an employee named p}, show the code that tests if the id is larger 100, and if so outputs: large id detected.
  solution
  if (p.id > 100) { std::cout << "large id detected" << std::endl; }
Formatting. Consider the following code (in a file test.cpp):
```
#include <iostream>
#include <format>

int main() {
    int x{2};
    int y{4};
    std::cout << std::format("x = {}, y = {}\n", x, y);
}
```
- This fails to compile with:
```
g++ -o test test.cpp
```
  and complains about std::format—what is missing from the compilation command?

  solution

  We need to enable support for C++20 via -std=c++20.
- What is the meaning of the \n?

  solution

  This is the newline escape code.

Understanding code. For each of the code snippets below, write what you expect the output to be:

int i{2};
int &j = i;
j = 4;
std::cout << i << std::endl;
std::cout << j << std::endl;

solution

Here, j is a reference to i. This outputs:

4
4

int a{9};
int b{15};
if (a % 2 == 0 || b % 5 == 0) {
   std::cout << "divisible" << std::endl;
} else {
   std::cout << "not divisible" << std::endl;
}

solution

This is an or operation (||), and since b % 5 = 0, we will output divisible.

Looping over vectors. You have a std::vector of double named vec. Give the lines of code that loop over all of the elements in vec and modifies them to be twice their value. At the end of the loop, the elements of vec should reflect this change.
solution
```
for (auto &e : vec) {
    e *= 2;
}
```
The key here is to use a reference to access the elements.
Functions I. Write a function that takes a double precision floating point number x and an integer a and returns the product \(a x\), as a double precision number.
solution
```
double f(double x, int a) {
    return a * x;
}
```
Functions II. Write a function that takes an argument x and updates the value passed in to be twice its value. The function has no return value—x is updated via the argument list.
solution
```
void f(double &x) {
    x *= 2;
}
```
Note: I didn’t specify the type of x, so you could have used int here.

Functions and conditionals. Write a function called contains_zero that takes a vector of integers as a const-reference and returns true if any of the elements are zero. Otherwise it returns false.

solution

bool contains_zero(const std::vector<int>& vec) {
    for (auto e : vec) {
        if (e == 0) {
            return true;
        }
    }
    return false;
}

Functional functions. Consider this function:
```
double apply(double x, std::function<double(double)> f) {
    // do stuff
}
```
What is the meaning of the second argument? Give an example of something you could pass in there.
solution

The second argument indicates that we take a function of the form:
```
double f(double x) { ... }
```
So we could pass in:
```
double f(double x) {
     return x * x;
}
```
for example.
Numerical methods.
- In 2-3 sentences, explain the difference between round-off error and truncation error.

  solution

  Roundoff is the error that the computer makes in representing a real number with a finite-number of bits.

  Truncation error is the error we make when we drop high-order terms in a Taylor series when deriving a numerical algorithm.
- Imagine we have 3 equally-spaced points sampling a function \(f(x)\): \((x_0, f_0)\), \((x_1, f_1)\), \((x_2, f_2)\). With the aid of a diagram, explain how we find the integral of \(f(x)\) from \(x_0\) to \(x_2\) using the trapezoid rule.

  Your diagram should draw the points and what the approximation to the integral looks like.

  solution

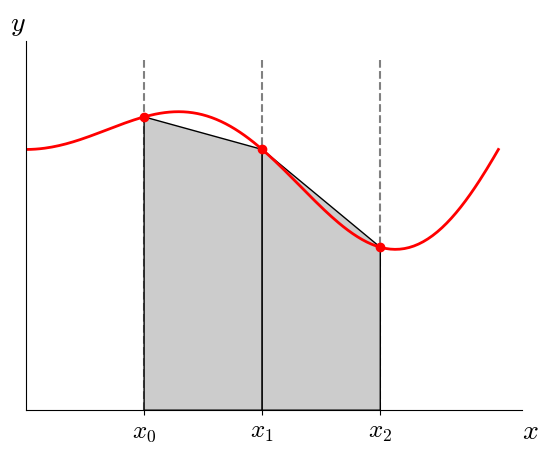

  We have something like this:

  here, we have 2 intervals defined by the three points, and the approximation to the integral is just the sum of the area of each shaded region. These are trapezoids.
