Explosive Nucleosynthesis

Explosive Nucleosynthesis#

Here we’ll explore burning up to iron group. To do this, we’ll create a moderately-sized network that includes links from He up to iron-group. And to make the integration easier, we’ll do a few approximations along the way.

import pynucastro as pyna

Assembling our library#

We start with a list of nuclei, including all \(\alpha\)-nuclei up to \({}^{56}\mathrm{Ni}\). We also add the intermediate nuclei that would participate in \((\alpha,p)(p,\gamma)\) reactions, as well as a few more nuclei, including those identified by Shen & Bildsten 2009 for bypassing the \({}^{12}\mathrm{C}(\alpha,\gamma){}^{16}\mathrm{O}\) rate.

nuclei = ["p",
          "he4", "c12", "o16", "ne20", "mg24", "si28", "s32",
          "ar36", "ca40", "ti44", "cr48", "fe52", "ni56", "zn60",
          "al27", "p31", "cl35", "k39", "sc43", "v47",
          "mn51", "co55", "cu59",
          "n13", "n14", "f18", "ne21", "na22", "na23"]

For our initial library, we take all of the ReacLib rates that link these.

reaclib_lib = pyna.ReacLibLibrary()
core_lib = reaclib_lib.linking_nuclei(nuclei)

Now we’ll add some more nuclei in the iron group.

iron_peak = ["n", "p", "he4",
             "mn51",
             "fe52", "fe53", "fe54", "fe55", "fe56",
             "co55", "co56", "co57",
             "ni56", "ni57", "ni58",
             "cu59", "zn60"]

We want the rates that connect these from ReacLib as well as tabulated weak rate compilations.

iron_reaclib = reaclib_lib.linking_nuclei(iron_peak)

weak_lib = pyna.TabularLibrary()
iron_weak_lib = weak_lib.linking_nuclei(iron_peak)

warning: Cu59 was not able to be linked in TabularLibrary
warning: He4 was not able to be linked in TabularLibrary
warning: Fe53 was not able to be linked in TabularLibrary
warning: Mn51 was not able to be linked in TabularLibrary
warning: Ni58 was not able to be linked in TabularLibrary
warning: Fe52 was not able to be linked in TabularLibrary
warning: Fe54 was not able to be linked in TabularLibrary
warning: Zn60 was not able to be linked in TabularLibrary

all_lib = core_lib + iron_reaclib + iron_weak_lib

Detailed balance#

Finally, we replace the reverse rates from ReacLib by rederiving them via detailed balance, and including the partition functions.

rates_to_derive = all_lib.backward().get_rates()

# now for each of those derived rates, look to see if the pair exists

for r in rates_to_derive:
    fr = all_lib.get_rate_by_nuclei(r.products, r.reactants)
    if fr:
        all_lib.remove_rate(r)
        d = pyna.DerivedRate(rate=fr, compute_Q=True, use_pf=True)
        all_lib.add_rate(d)

Removing duplicates#

There will be some duplicate rates now because we pulled rates both from ReacLib and from tabulated sources. Here we keep the tabulated version of any duplicate rates.

all_lib.eliminate_duplicates()

Creating the network and rate approximations#

Now that we have our library, we can make a network.

net = pyna.PythonNetwork(libraries=[all_lib])

Next, we will do the \((\alpha,p)(p,\gamma)\) approximation and eliminate the intermediate nuclei

net.make_ap_pg_approx(intermediate_nuclei=["cl35", "k39", "sc43", "v47"])
net.remove_nuclei(["cl35", "k39", "sc43", "v47"])

using approximate rate S32 + He4 ⟶ Ar36 + 𝛾
using approximate rate Ar36 ⟶ S32 + He4
using approximate rate Ar36 + He4 ⟶ Ca40 + 𝛾
using approximate rate Ca40 ⟶ Ar36 + He4
using approximate rate Ca40 + He4 ⟶ Ti44 + 𝛾
using approximate rate Ti44 ⟶ Ca40 + He4
using approximate rate Ti44 + He4 ⟶ Cr48 + 𝛾
using approximate rate Cr48 ⟶ Ti44 + He4
removing rate S32 + He4 ⟶ Ar36 + 𝛾
removing rate S32 + He4 ⟶ p + Cl35
removing rate Cl35 + p ⟶ Ar36 + 𝛾
removing rate Ar36 ⟶ He4 + S32
removing rate Ar36 ⟶ p + Cl35
removing rate Cl35 + p ⟶ He4 + S32
removing rate Ar36 + He4 ⟶ Ca40 + 𝛾
removing rate Ar36 + He4 ⟶ p + K39
removing rate K39 + p ⟶ Ca40 + 𝛾
removing rate Ca40 ⟶ He4 + Ar36
removing rate Ca40 ⟶ p + K39
removing rate K39 + p ⟶ He4 + Ar36
removing rate Ca40 + He4 ⟶ Ti44 + 𝛾
removing rate Ca40 + He4 ⟶ p + Sc43
removing rate Sc43 + p ⟶ Ti44 + 𝛾
removing rate Ti44 ⟶ He4 + Ca40
removing rate Ti44 ⟶ p + Sc43
removing rate Sc43 + p ⟶ He4 + Ca40
removing rate Ti44 + He4 ⟶ Cr48 + 𝛾
removing rate Ti44 + He4 ⟶ p + V47
removing rate V47 + p ⟶ Cr48 + 𝛾
removing rate Cr48 ⟶ He4 + Ti44
removing rate Cr48 ⟶ p + V47
removing rate V47 + p ⟶ He4 + Ti44
looking to remove P31 + He4 ⟶ Cl35 + 𝛾
looking to remove Cl35 + He4 ⟶ K39 + 𝛾
looking to remove Cl35 ⟶ He4 + P31
looking to remove K39 ⟶ He4 + Cl35
looking to remove Cl35 + He4 ⟶ K39 + 𝛾
looking to remove K39 + He4 ⟶ Sc43 + 𝛾
looking to remove K39 ⟶ He4 + Cl35
looking to remove Sc43 ⟶ He4 + K39
looking to remove K39 + He4 ⟶ Sc43 + 𝛾
looking to remove Sc43 + He4 ⟶ V47 + 𝛾
looking to remove Sc43 ⟶ He4 + K39
looking to remove V47 ⟶ He4 + Sc43
looking to remove Sc43 + He4 ⟶ V47 + 𝛾
looking to remove V47 + He4 ⟶ Mn51 + 𝛾
looking to remove V47 ⟶ He4 + Sc43
looking to remove Mn51 ⟶ He4 + V47

We will also approximate some of the neutron captures:

net.make_nn_g_approx(intermediate_nuclei=["fe53", "fe55", "ni57"])
net.remove_nuclei(["fe53", "fe55", "ni57"])

approximating out Fe53
using approximate rate Fe52 + n + n ⟶ Fe54 + 𝛾
using approximate rate Fe54 ⟶ Fe52 + n + n
approximating out Fe55
using approximate rate Fe54 + n + n ⟶ Fe56 + 𝛾
using approximate rate Fe56 ⟶ Fe54 + n + n
approximating out Ni57
using approximate rate Ni56 + n + n ⟶ Ni58 + 𝛾
using approximate rate Ni58 ⟶ Ni56 + n + n
removing rate Fe52 + n ⟶ Fe53 + 𝛾
removing rate Fe53 + n ⟶ Fe54 + 𝛾
removing rate Fe54 ⟶ n + Fe53
removing rate Fe53 ⟶ n + Fe52
removing rate Fe54 + n ⟶ Fe55 + 𝛾
removing rate Fe55 + n ⟶ Fe56 + 𝛾
removing rate Fe56 ⟶ n + Fe55
removing rate Fe55 ⟶ n + Fe54
removing rate Ni56 + n ⟶ Ni57 + 𝛾
removing rate Ni57 + n ⟶ Ni58 + 𝛾
removing rate Ni58 ⟶ n + Ni57
removing rate Ni57 ⟶ n + Ni56
looking to remove Fe53 + He4 ⟶ Ni57 + 𝛾
looking to remove Fe53 + He4 ⟶ p + Co56
looking to remove Ni56 + n ⟶ He4 + Fe53
looking to remove Ni57 ⟶ He4 + Fe53
looking to remove Fe53 + He4 ⟶ n + Ni56
looking to remove Co56 + p ⟶ He4 + Fe53
looking to remove Fe55 + p ⟶ Co56 + 𝛾
looking to remove Co55 + n ⟶ p + Fe55
looking to remove Ni58 + n ⟶ He4 + Fe55
looking to remove Co56 ⟶ p + Fe55
looking to remove Fe55 + p ⟶ n + Co55
looking to remove Fe55 + He4 ⟶ n + Ni58
looking to remove Co55 + e⁻ ⟶ Fe55 + 𝜈
looking to remove Fe55 ⟶ Co55 + e⁻ + 𝜈
looking to remove Fe53 + He4 ⟶ Ni57 + 𝛾
looking to remove Co56 + p ⟶ Ni57 + 𝛾
looking to remove Ni57 + n ⟶ p + Co57
looking to remove Ni57 + n ⟶ He4 + Fe54
looking to remove Zn60 + n ⟶ He4 + Ni57
looking to remove Ni57 ⟶ p + Co56
looking to remove Ni57 ⟶ He4 + Fe53
looking to remove Fe54 + He4 ⟶ n + Ni57
looking to remove Co57 + p ⟶ n + Ni57
looking to remove Ni57 + He4 ⟶ n + Zn60
looking to remove Co57 ⟶ Ni57 + e⁻ + 𝜈
looking to remove Ni57 + e⁻ ⟶ Co57 + 𝜈

and finally, make some of the protons into NSE protons

# make all rates with A >= 48 use NSE protons
net.make_nse_protons(48)

modifying p_Mn51__Fe52 to use NSE protons
modifying Fe52__p_Mn51__derived to use NSE protons
modifying p_Co55__Ni56 to use NSE protons
modifying Ni56__p_Co55__derived to use NSE protons
modifying p_Cu59__Zn60 to use NSE protons
modifying Zn60__p_Cu59__derived to use NSE protons
modifying He4_Cr48__p_Mn51 to use NSE protons
modifying p_Mn51__He4_Cr48__derived to use NSE protons
modifying He4_Fe52__p_Co55 to use NSE protons
modifying p_Co55__He4_Fe52__derived to use NSE protons
modifying p_Cu59__He4_Ni56 to use NSE protons
modifying He4_Ni56__p_Cu59__derived to use NSE protons
modifying p_Fe54__Co55 to use NSE protons
modifying Co55__p_Fe54__derived to use NSE protons
modifying p_Fe56__Co57 to use NSE protons
modifying Co57__p_Fe56__derived to use NSE protons
modifying p_Co57__Ni58 to use NSE protons
modifying Ni58__p_Co57__derived to use NSE protons
modifying p_Ni58__Cu59 to use NSE protons
modifying Cu59__p_Ni58__derived to use NSE protons
modifying He4_Mn51__p_Fe54 to use NSE protons
modifying p_Fe54__He4_Mn51__derived to use NSE protons
modifying He4_Co55__p_Ni58 to use NSE protons
modifying p_Ni58__He4_Co55__derived to use NSE protons
modifying n_Co56__p_Fe56 to use NSE protons
modifying p_Fe56__n_Co56__derived to use NSE protons
modifying p_Co57__He4_Fe54 to use NSE protons
modifying He4_Fe54__p_Co57__derived to use NSE protons
modifying n_Ni56__p_Co56 to use NSE protons
modifying p_Co56__n_Ni56__derived to use NSE protons

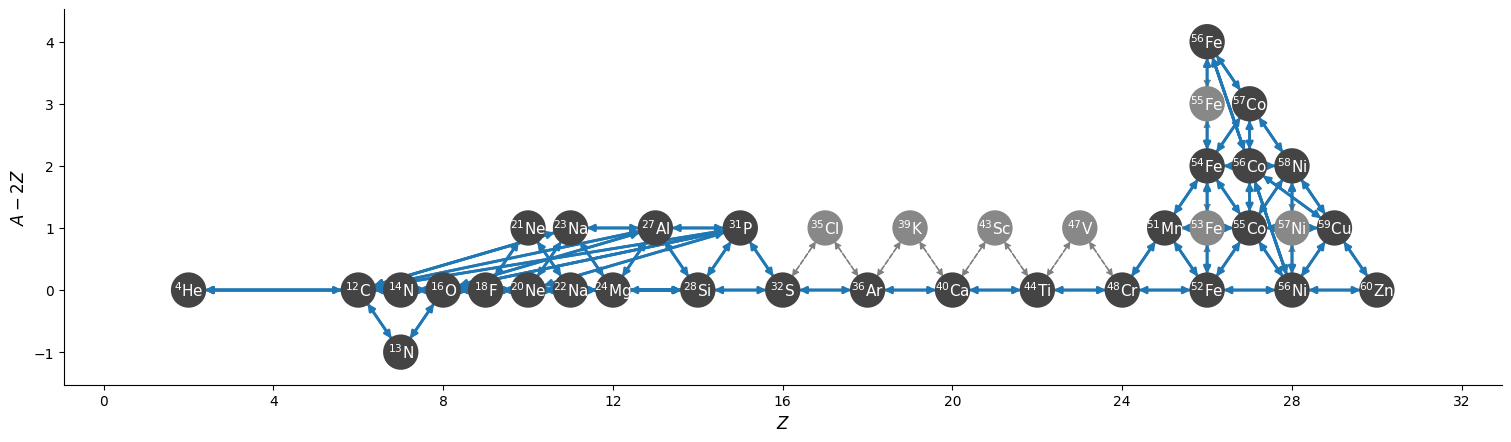

Visualizing the network#

Let’s visualize the network

fig = net.plot(rotated=True, hide_xalpha=True,
               size=(1500, 450),
               node_size=550, node_font_size=11)
../_images/c93ac263ad14b660843a2927abb7f6d120877dab345e39a8fa50d2eb12efb828.png

Burning to iron-group#

We’ll write out the network to a python module and do a test integration with it.

net.write_network("he_burn.py")

/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: C12 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N13 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N14 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: p_nse partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))

import he_burn

from scipy.integrate import solve_ivp
import numpy as np

We’ll pick thermodynamic conditions that are very dense and hot–we should enter NSE here. And weak rates will also have a big effect, meaning that \(Y_e\) should evolve.

Initially, we have \(Y_e = 1/2\).

rho = 1.e9
T = 5.e9

X0 = np.zeros(he_burn.nnuc)
X0[he_burn.jhe4] = 0.95
X0[he_burn.jc12] = 0.02

Y0 = X0/he_burn.A

from pynucastro.screening import chugunov_2007

We’ll specific the time-points where we want to store the solution.

tmax = 1.0
tmin = 1.e-12
factor = 6
n = factor * int(np.log10(tmax) - np.log10(tmin)) + 1
t_eval = np.logspace(np.log10(tmin), np.log10(tmax), n, endpoint=True)

sol = solve_ivp(he_burn.rhs, [0, tmax], Y0,
                method="BDF", jac=he_burn.jacobian,
                t_eval=t_eval, args=(rho, T, chugunov_2007),
                rtol=1.e-5, atol=1.e-8)

Was the integration successful?

sol.success

True

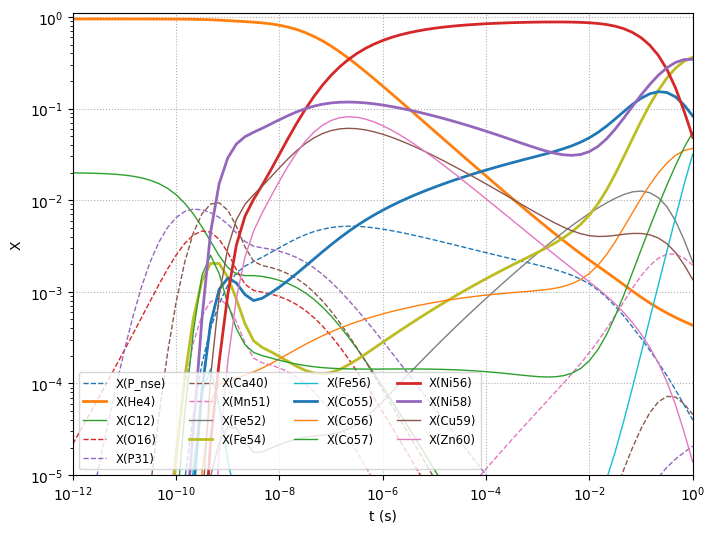

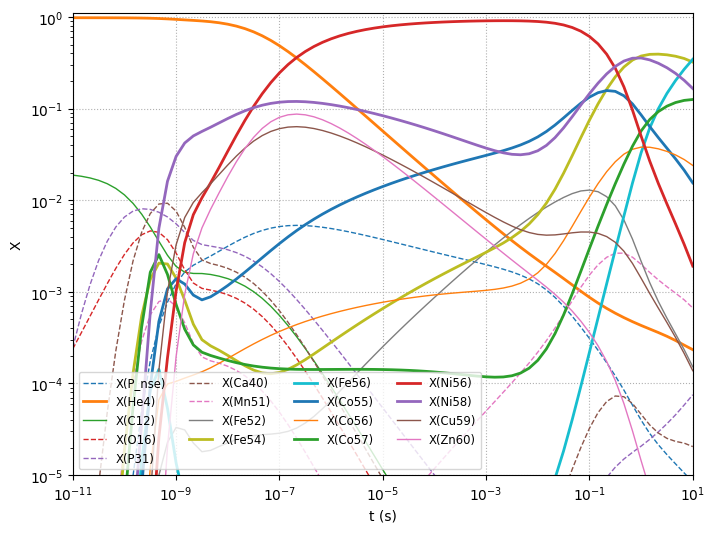

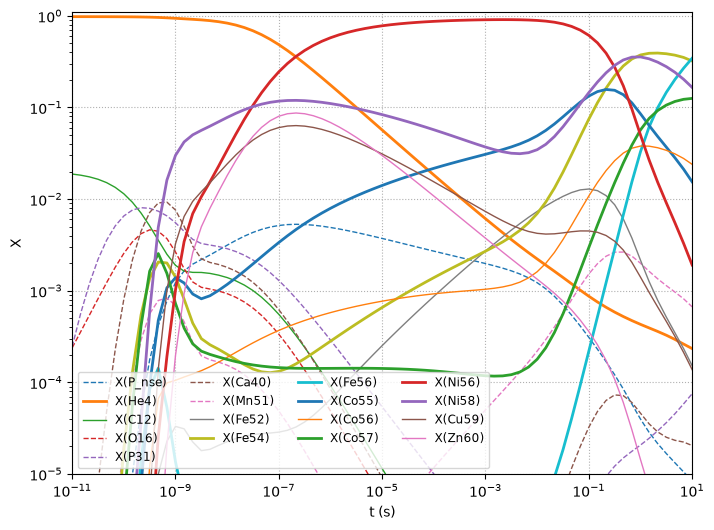

Plotting the evolution#

import matplotlib.pyplot as plt

Here we only plot the most abundant species

fig, ax = plt.subplots()

for i in range(he_burn.nnuc):
    Xmax = sol.y[i, :].max() * he_burn.A[i]
    if Xmax > 1.e-1:
        ax.loglog(sol.t, sol.y[i,:] * he_burn.A[i], linewidth=2,
                  label=f"X({he_burn.names[i].capitalize()})")
    elif Xmax > 1.e-2:
        ax.loglog(sol.t, sol.y[i,:] * he_burn.A[i], linewidth=1,
                  label=f"X({he_burn.names[i].capitalize()})")
    elif Xmax > 1.e-3:
        ax.loglog(sol.t, sol.y[i,:] * he_burn.A[i], linewidth=1, ls="--",
                  label=f"X({he_burn.names[i].capitalize()})")

ax.set_ylim(1.e-5, 1.1)
ax.legend(fontsize="small", ncol=4, loc=3)
ax.set_xlabel("t (s)")
ax.set_ylabel("X")
ax.margins(0)
ax.grid(ls=":")
fig.set_size_inches(8, 6)
../_images/72d6a0679db8c5825e2748898693c4c73b2d6e9e8e6a35f12b851bff91be24a2.png

\(Y_e\) evolution#

X_final = sol.y[:, -1] * he_burn.A
comp = pyna.Composition(net.unique_nuclei)
comp.set_array(X_final)

Notice that \(Ye\) has changed a bit due to electron captures.

comp.ye

0.48278945565002296

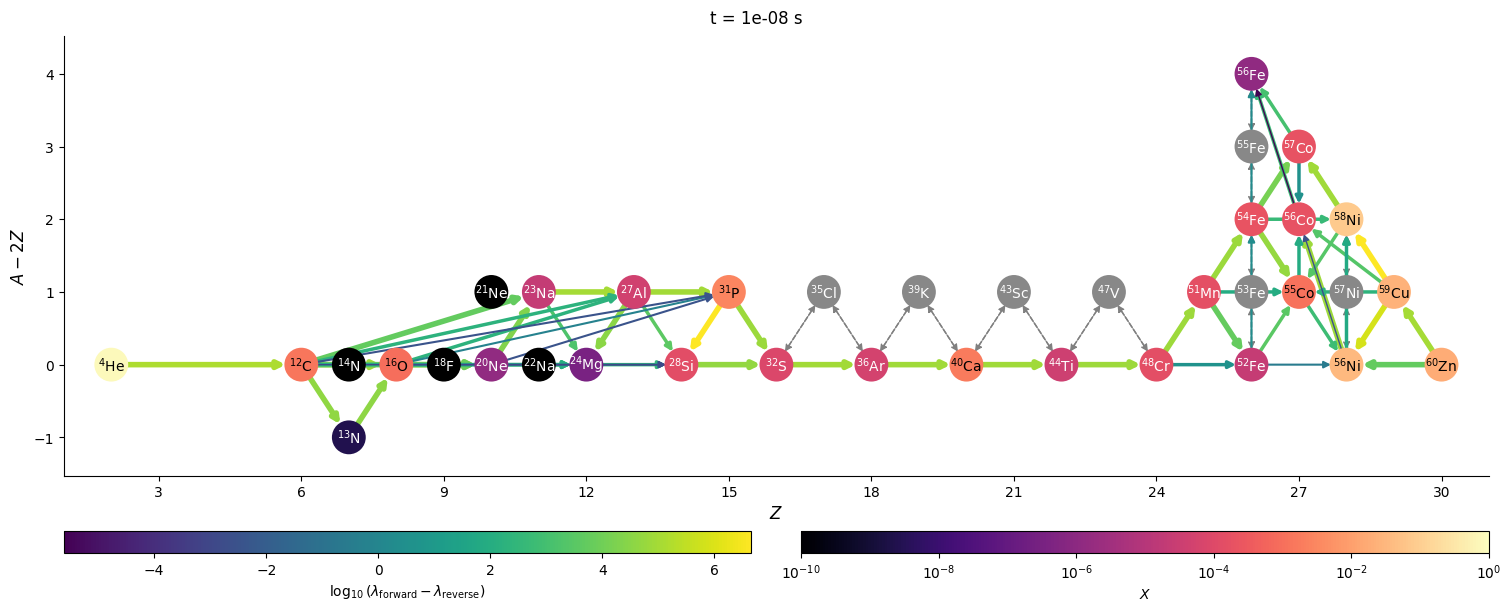

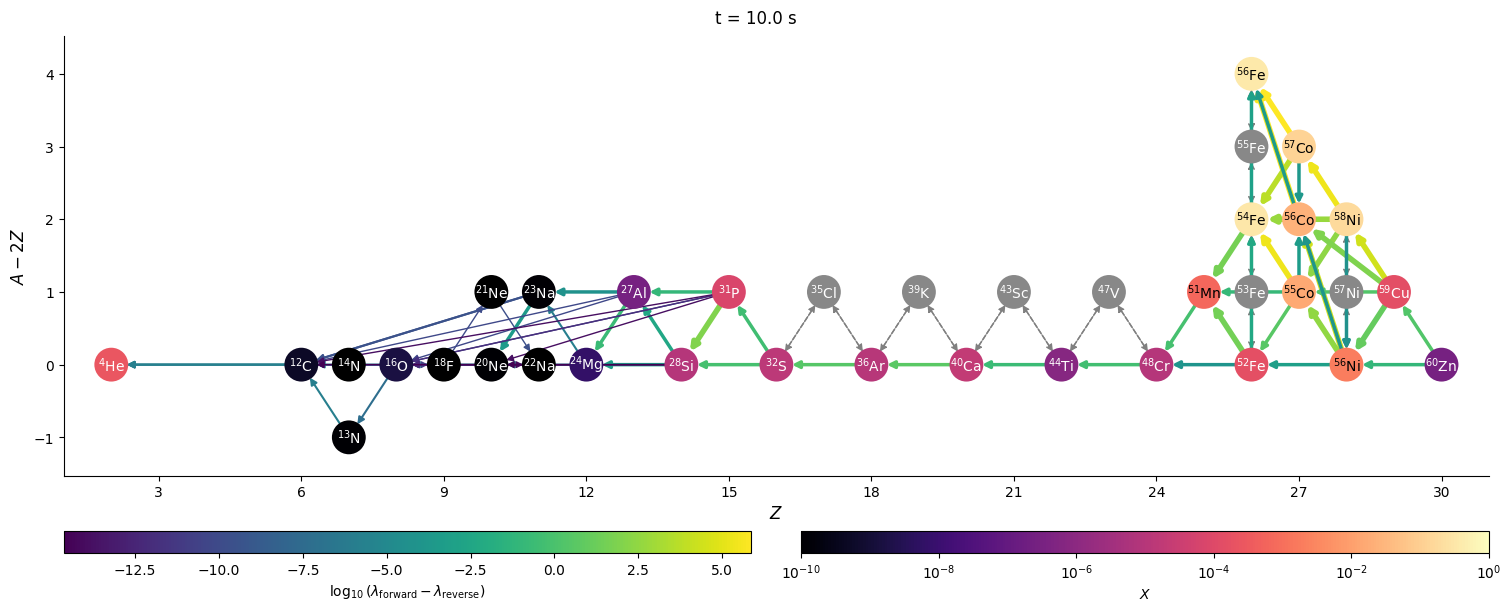

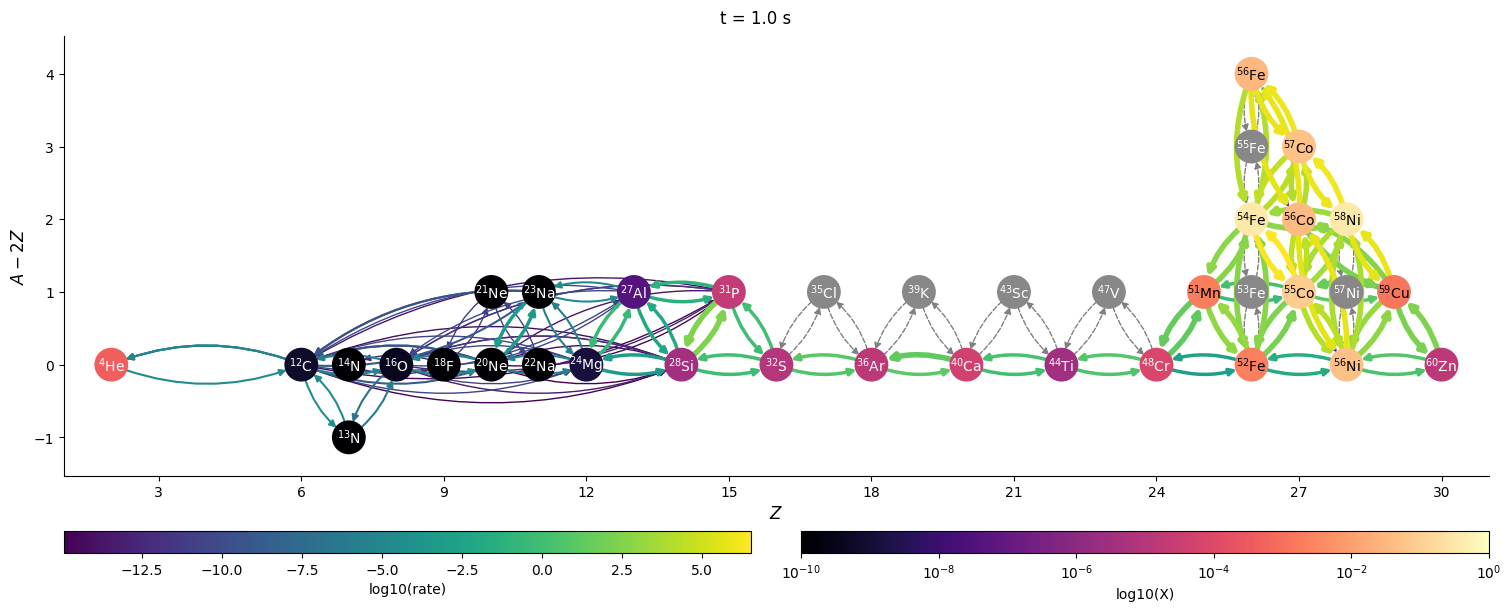

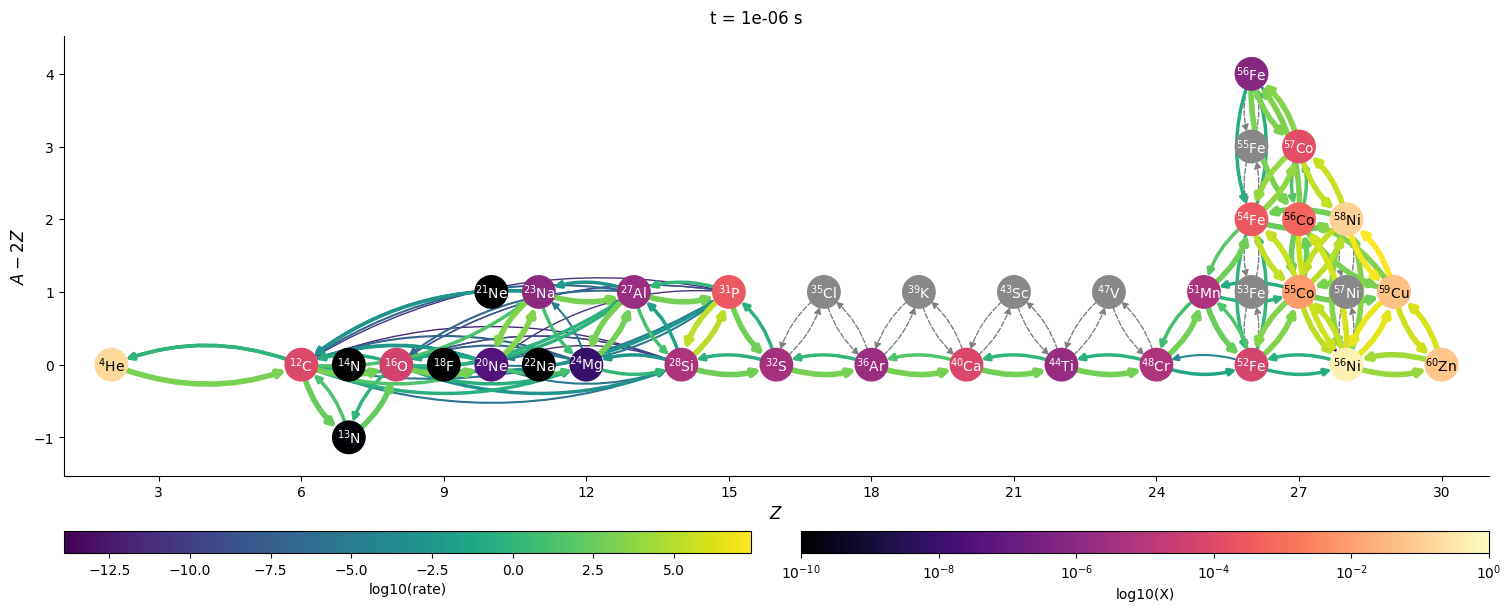

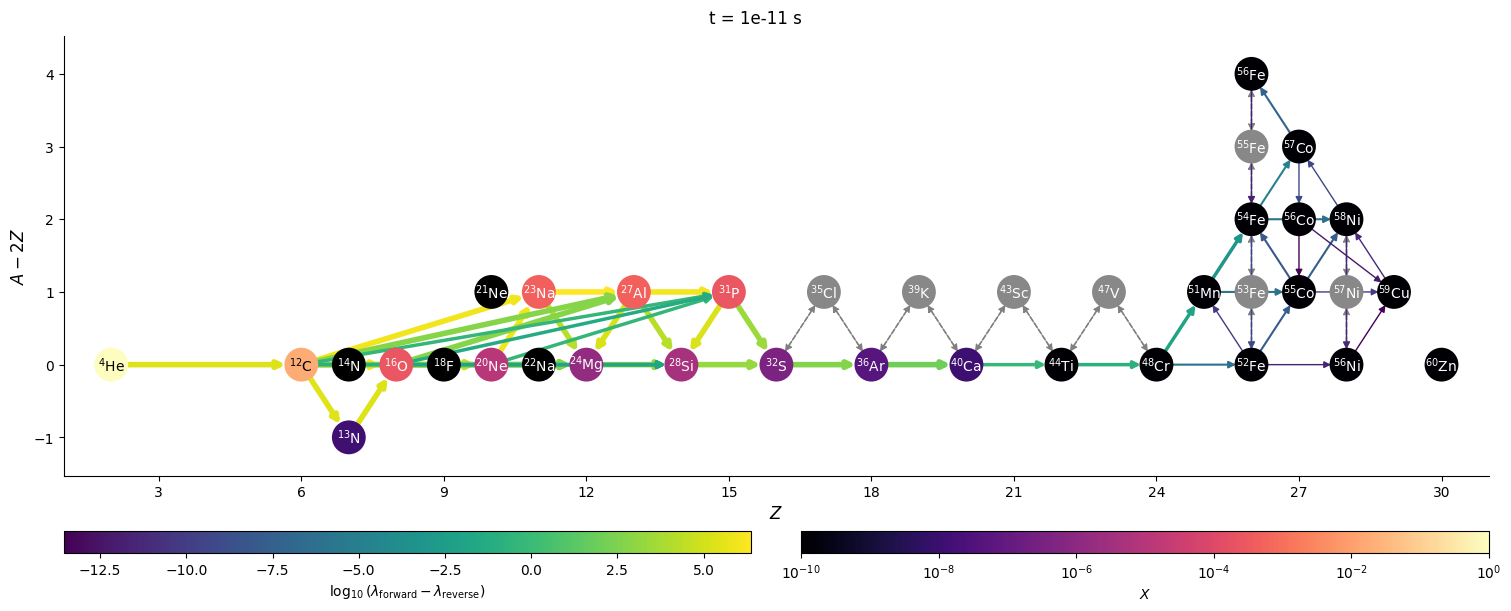

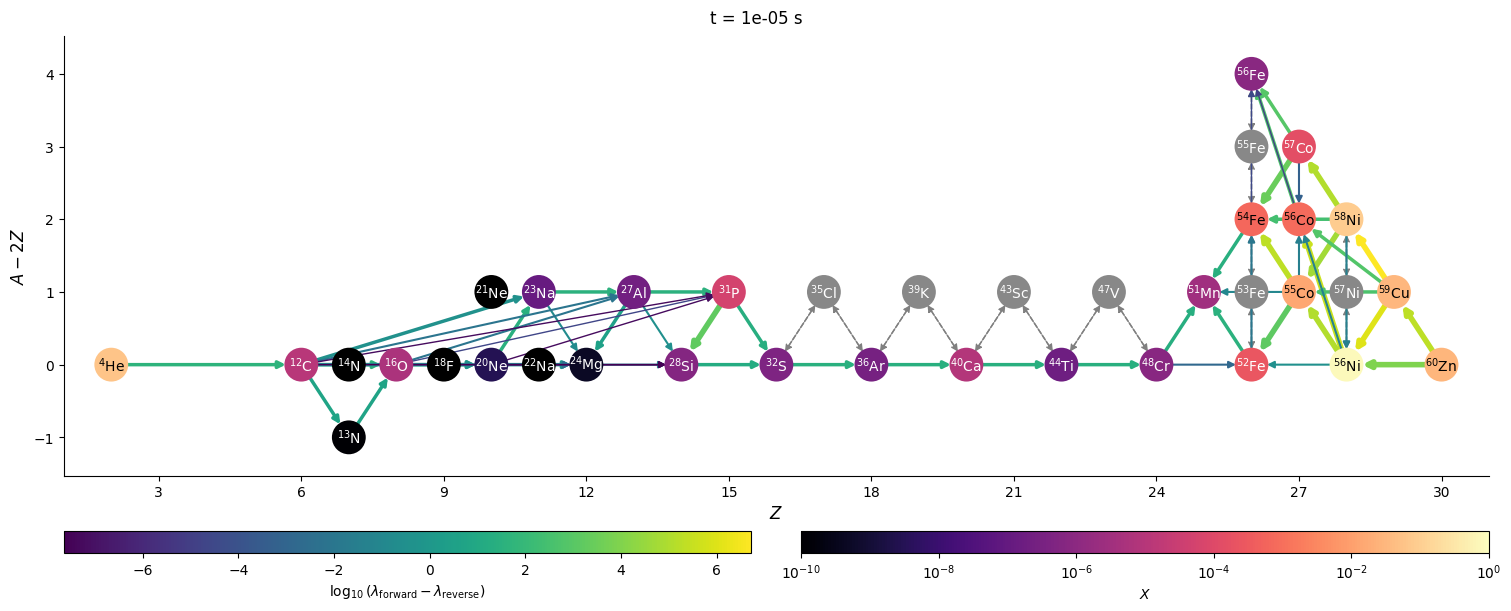

Visualizing network flow#

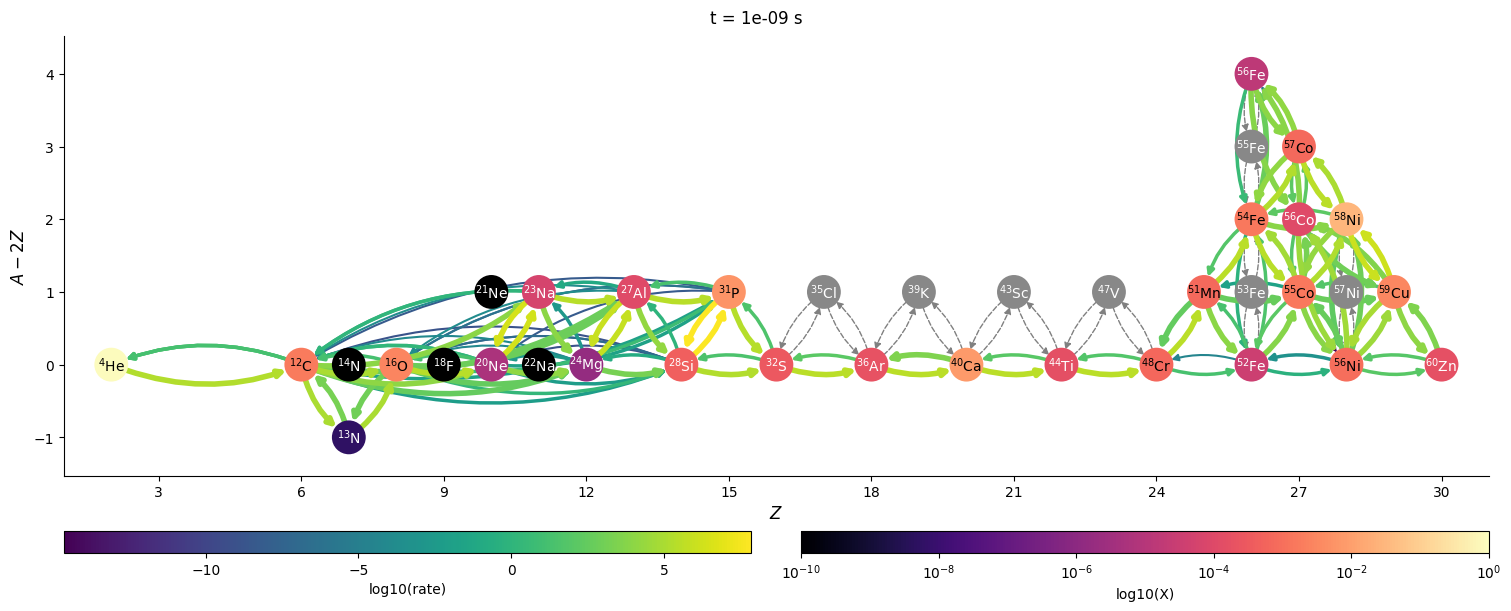

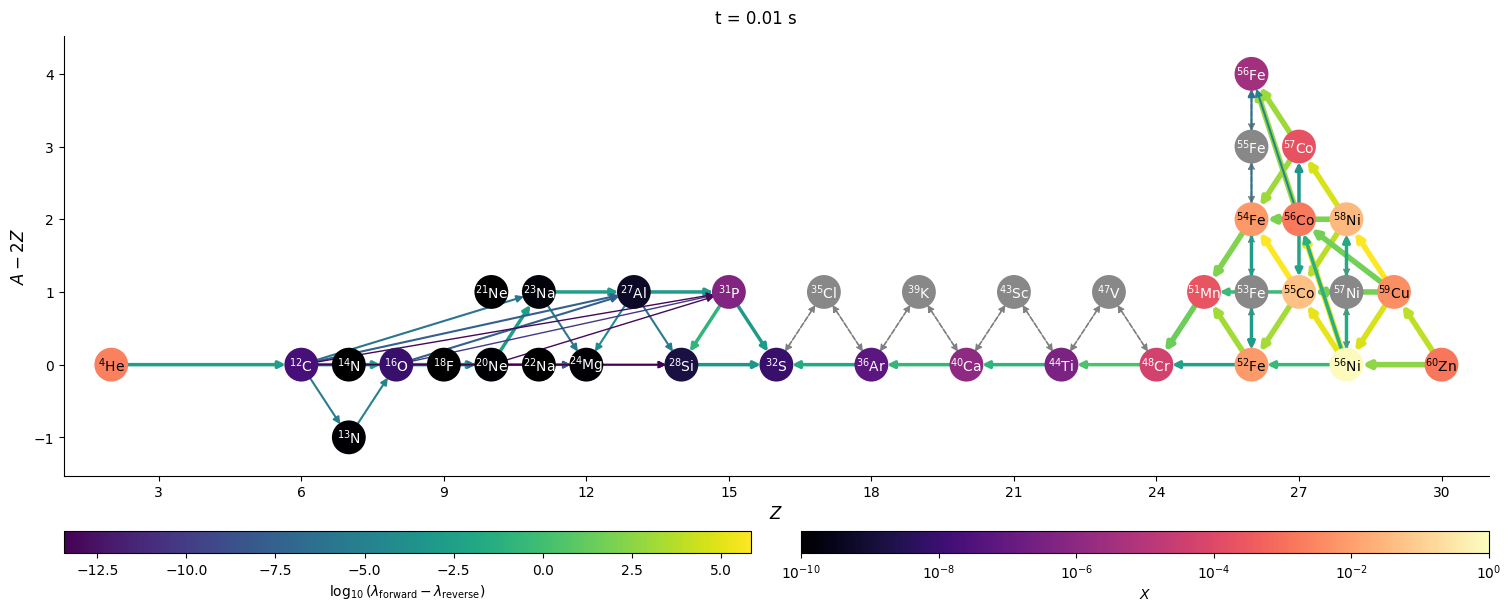

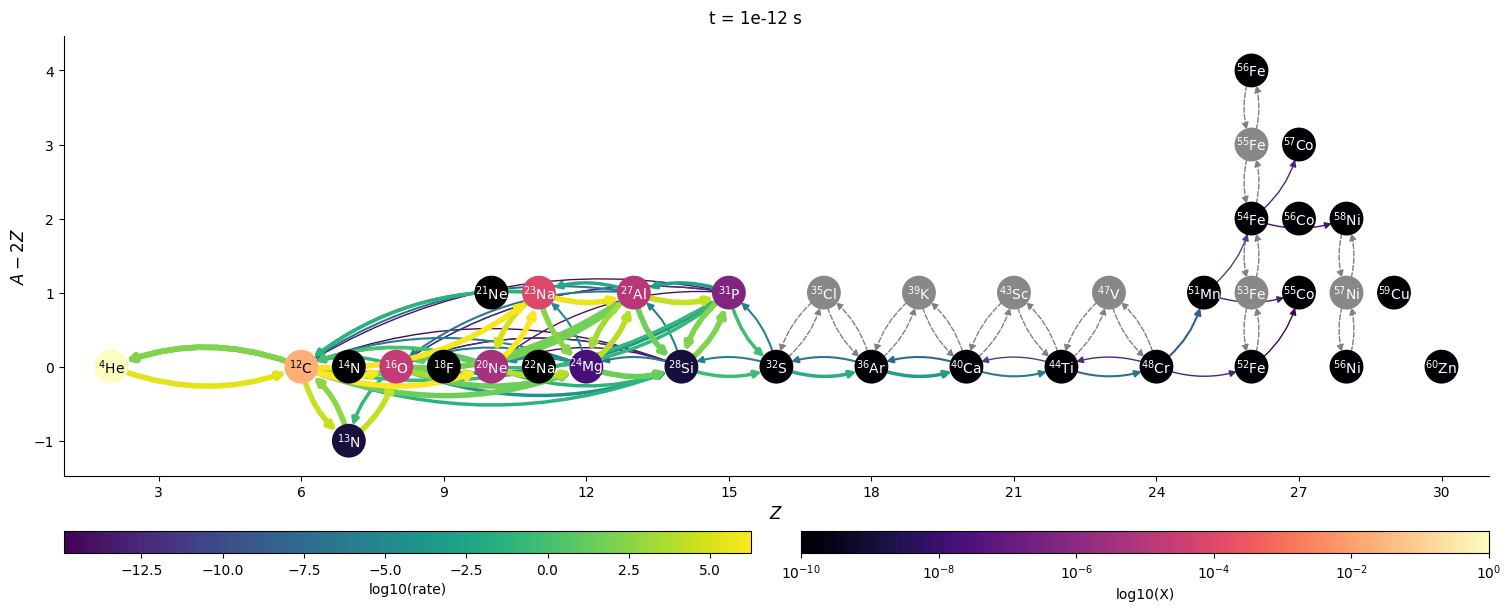

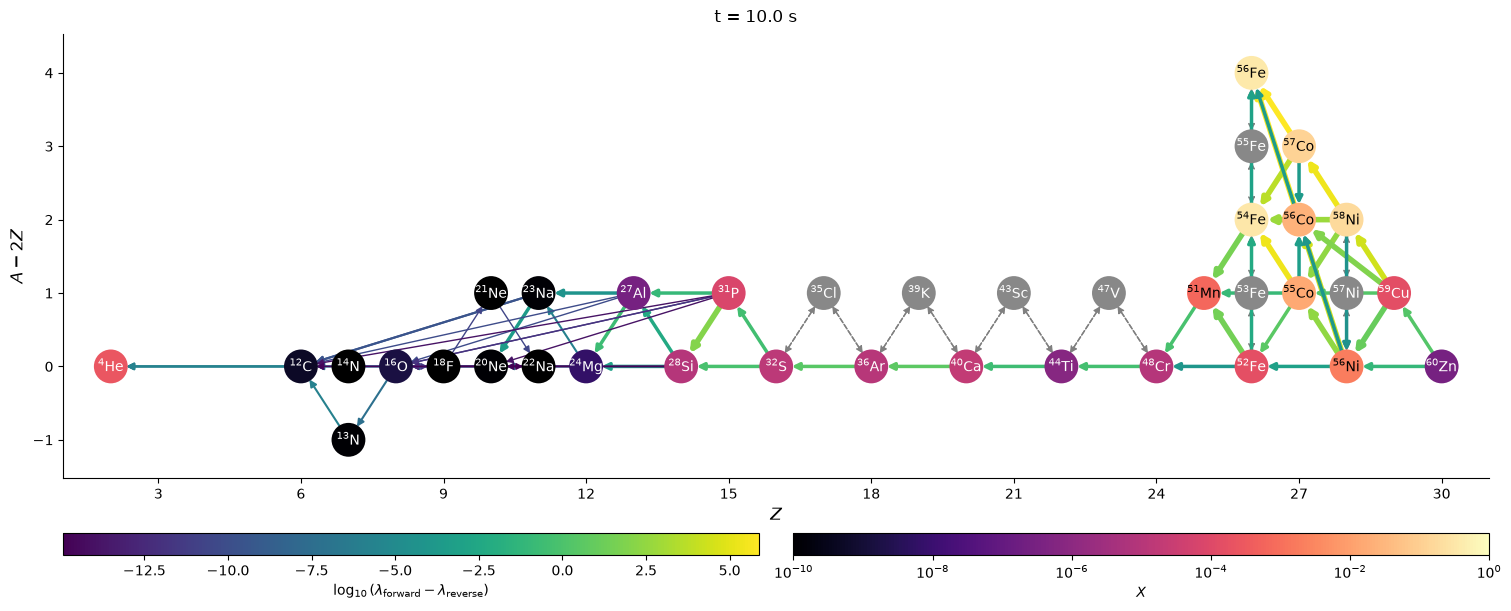

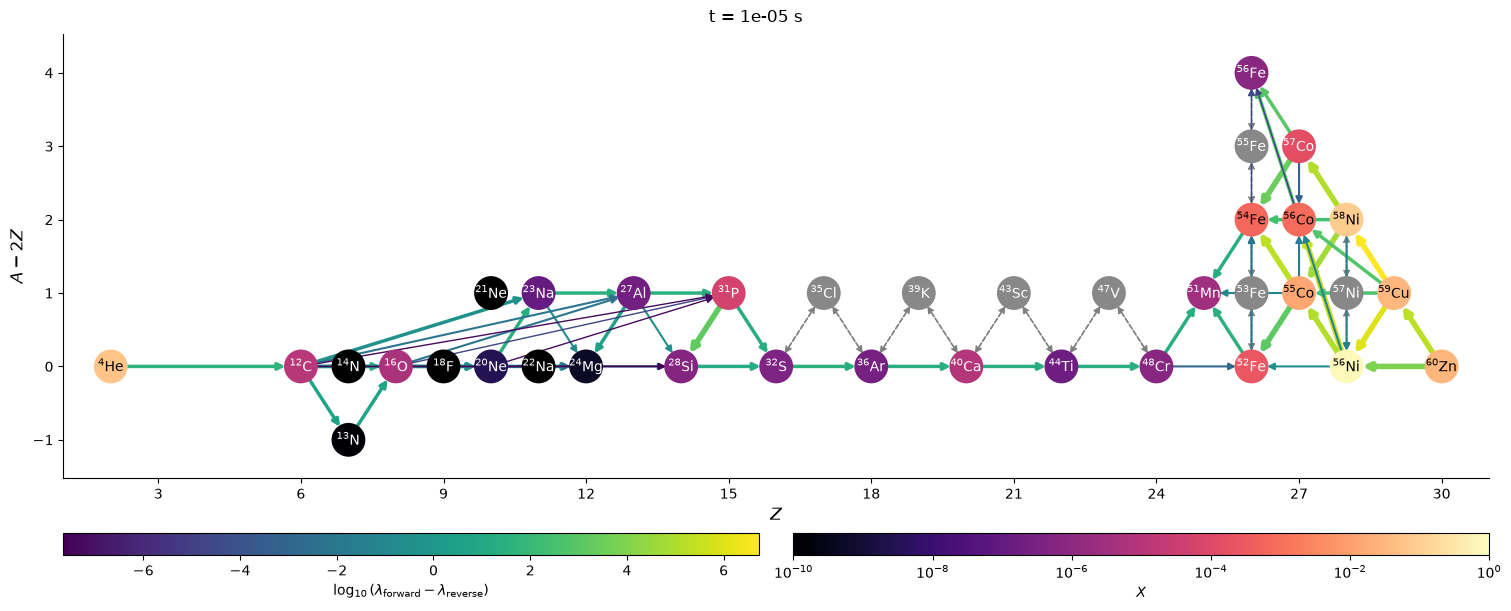

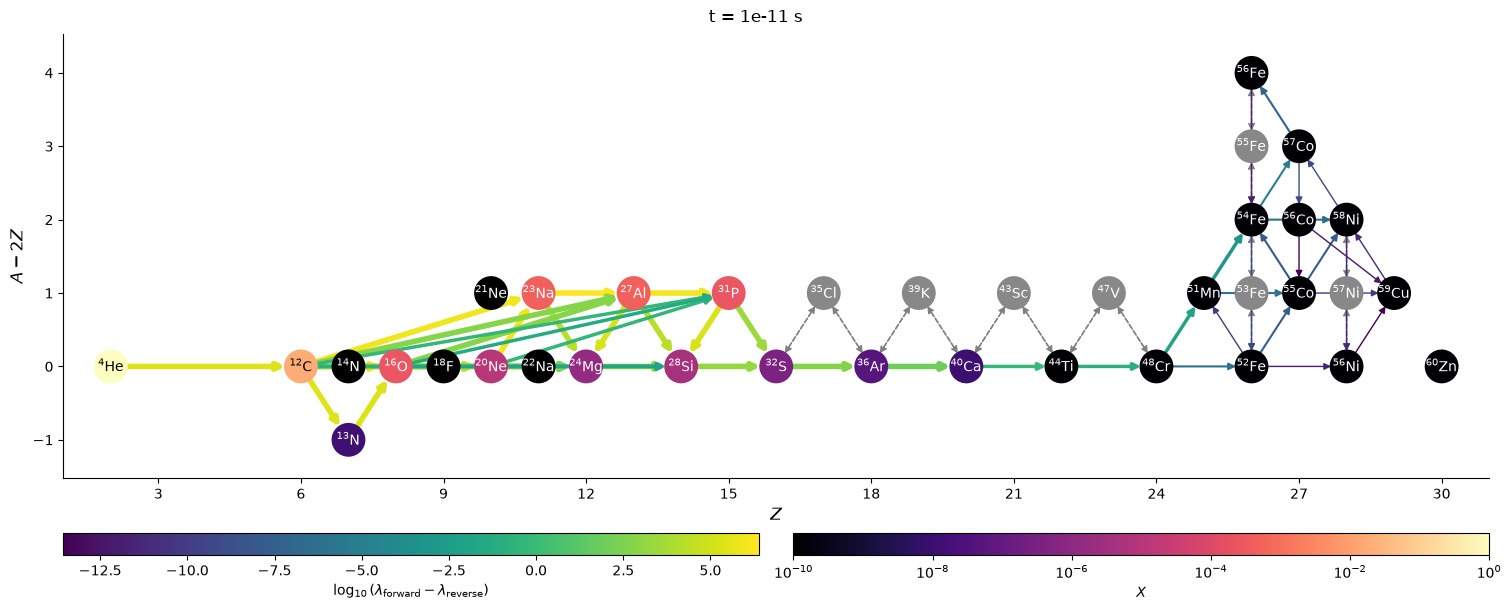

Finally, we can visualize the evolution of the flow through the network. We’ll just work with a few of the times that were saved.

for idx in range(0, n, 3*factor):
    t = sol.t[idx]
    Y = sol.y[:, idx]
    comp.set_array(Y * he_burn.A)
    fig = net.plot(rho, T, comp,
                   rotated=True, hide_xalpha=True, curved_edges=True,
                   size=(1500, 600),
                   ydot_cutoff_value=1.e-15,
                   color_nodes_by_abundance=True,
                   Z_range=(1, 31),
                   node_size=500, node_font_size=10)
    fig.suptitle(f"t = {t} s")

/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: C12 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N13 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N14 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: p_nse partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))

/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: C12 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N13 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: N14 partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
/opt/hostedtoolcache/Python/3.12.11/x64/lib/python3.12/site-packages/pynucastro/rates/derived_rate.py:126: UserWarning: p_nse partition function is not supported by tables: set pf = 1.0 by default
  warnings.warn(UserWarning(f'{nuc} partition function is not supported by tables: set pf = 1.0 by default'))
../_images/c14379f1c6c160e5aacfc0f815b0ba28bf4bb9179cc22c181036559eeadc2db2.png ../_images/665f6fb0cdf0287078377260891b3a624e25cb75f6d5acb07691dcf56ebe2721.png ../_images/4fb4d3471e2e68bb87e67c3e741f7603b2459a8ac7f9388132e3a8f1dd1825d1.png ../_images/4169af187ed2c93f2a0ddc4b73217121108fb385ea2918a466b7949279bcc4cd.png ../_images/6da619a6735211a993945b9895056f2e79ad1000d0b8cbff03c3024040c9409a.png
Contents
